Standard: M.2 NVME Enclosure
Transfer speed:10Gbps
Product Dimensions 4.49"L x 1.5"W x 0.47"H
Product Description
1.Applicable SSD: SSK M.2 NVME SSD Enclosure is compatible with NVME PCIe M Key connectors SSD
2.Aluminum Alloy Shell: Features a sleek and aluminum shell for optimal heat dissipation and portability. Includes 2 thermal pads and both USB 3.2 Type-C and USB 3.2 (Type-A) cable
3.Tool-Free Design and Speed: 100% Tool-Free, quickly install and remove SSDs without any tools. M.2 NVME USB3.2 Gen2 Transfer speed is up to 10Gbps. Thunderbolt 3 compatible. One HD movie transfer only takes 2 seconds; Backward compatible with USB3.1 Gen1 and USB3.0 at respective speed limits. Thunderbolt 3 compatible
4.Blue Indicator: Blue Indicator shows the data transfer status, easy and clear; SSD file system must be supported on host operating system to be accessible.
Master Chip: Adopts high performance controller IC Chipset JMS583, Complies with UASP, Trim which can effectively improve the speed and extend the longevity of SSD. Plug-and-play, no additional drivers required.
SSK M.2 NVME SSD Enclosure adopts high performance controller Chipset RTL9210B, with high-speed data transmission speeds up to 10Gbps . 1GB file only takes1 second ;
Attention: It supports PCI-E based M key M.2 NVME SSD read/write speed up to 10Gbps Only;
Not compatible with B Key and B&M Key Connectors.Does not support M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs.

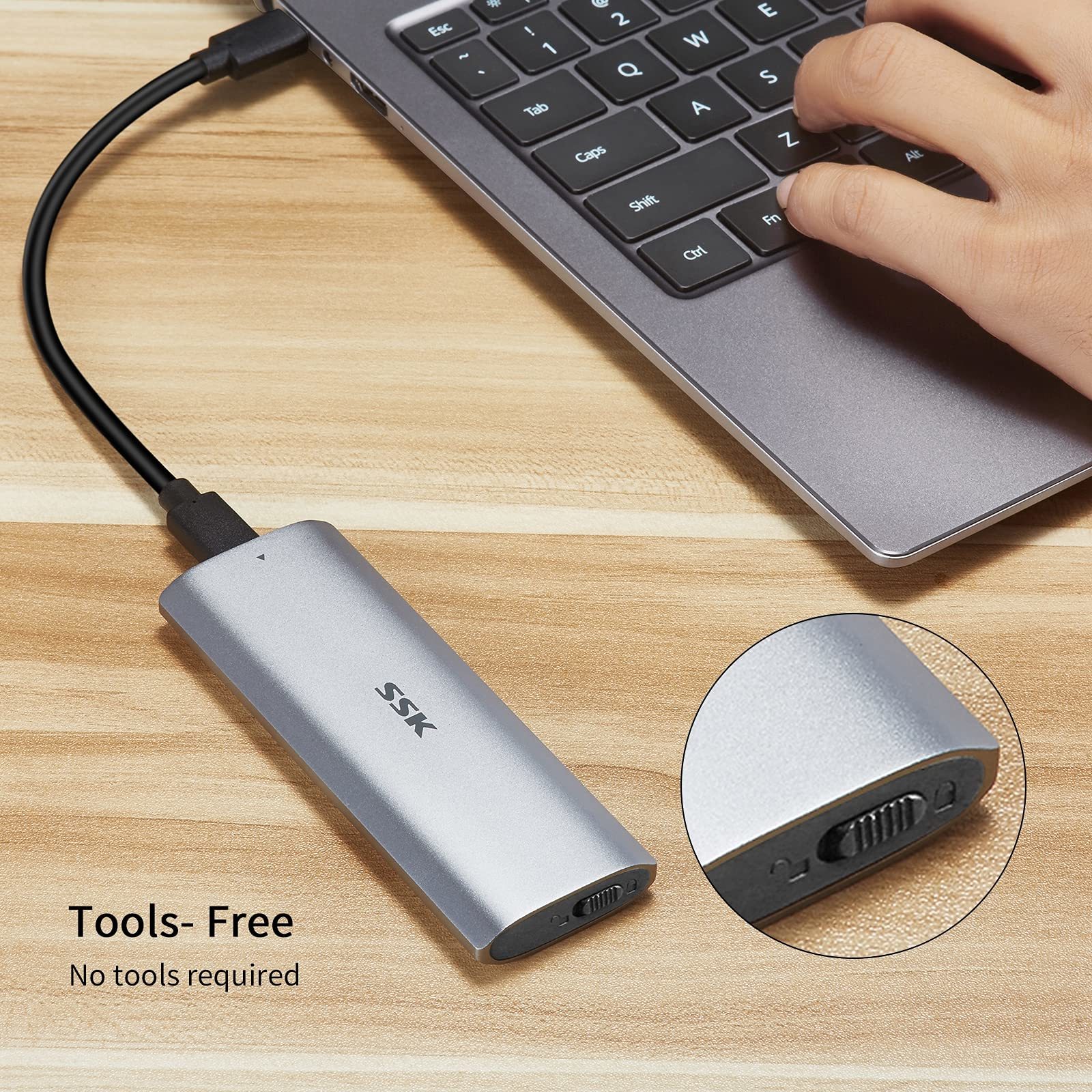

Tool-Free,No tool required
Interface type: M.2 NVME to USB 3.1 Gen 2
Support SSD Drivers Size: 2230, 2242, 2260, 2280mm
Cable 1 : USB C to USB C(150MM)
Cable 2 : USB3.0 AM to USB C(150MM)
Color: Silver Grey
M.2 NVME PCIe M key Enclosure Adapter
Only compatible with NVME M Key connectors
Not compatible with B Key and B+M Key Connectors.
Does not support M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs.
Attention: NVMe SSDs are not included.
If youdon't know which type is your SSD and you have any questions, please ask SSK Direct before purchasing.
Main Features
Easy Installation & Extreme Data Transfer

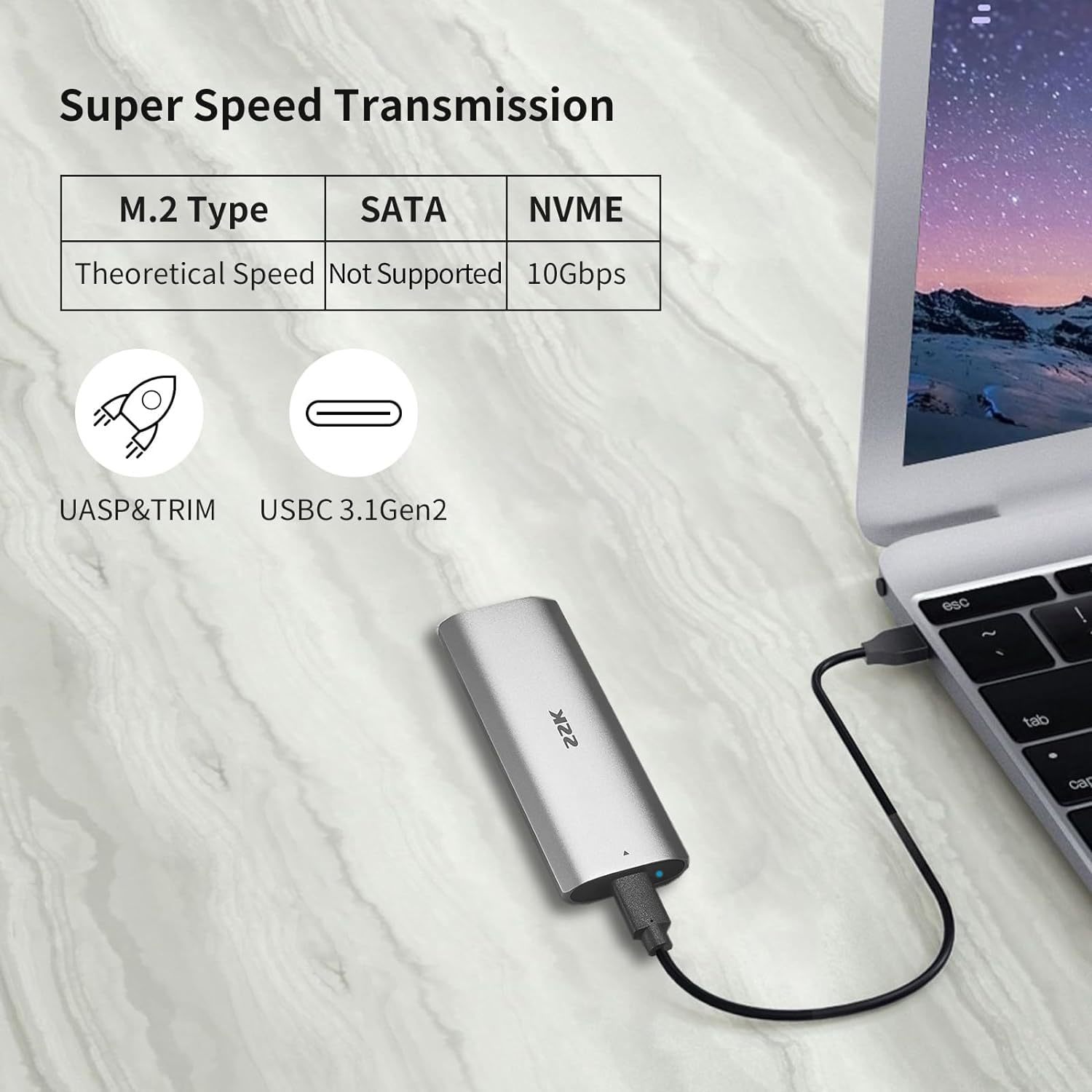

Plug and play, no driver required. With USB 3.1 Gen2 interface,provides transfer speeds of up to 1000MB/s,1GB file1 second. Backward compatible with USB 2.0 and USB 1.1.
2* Thermal Pads included for Excellent Heat Dissipation
Everything you need in one package, included 2* thermal pads, you can paste one thermal pad or two side by side to achieve rapid heat dissipation.

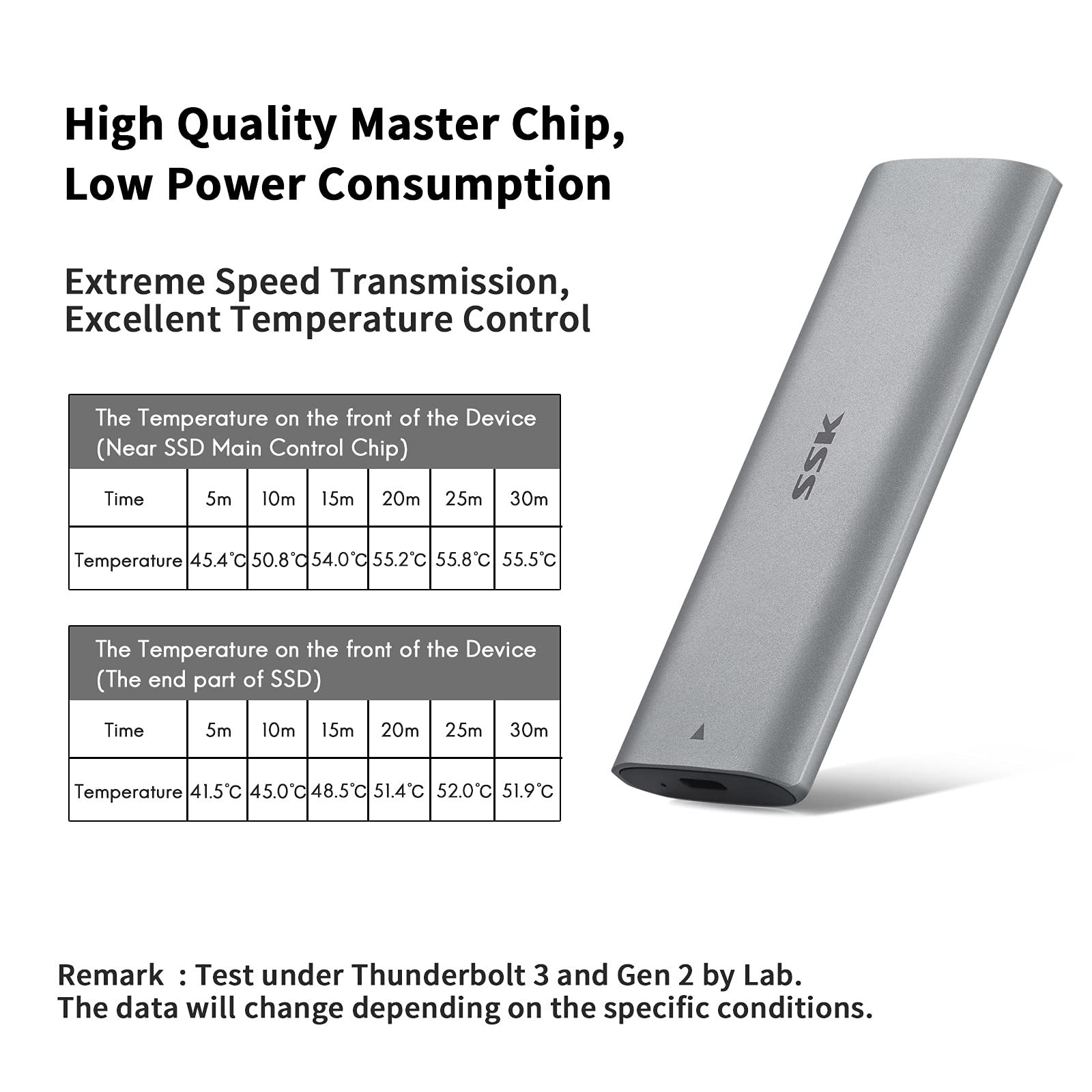

Attention: Due to the nvme SSD extreme transmission speed, the temperature is higher than USB3.0 HDD, we tested ours is around 50 °C in writing and below 40 °C in reading, even after a long time R/W, the speed will not drop down or device will not shut down.

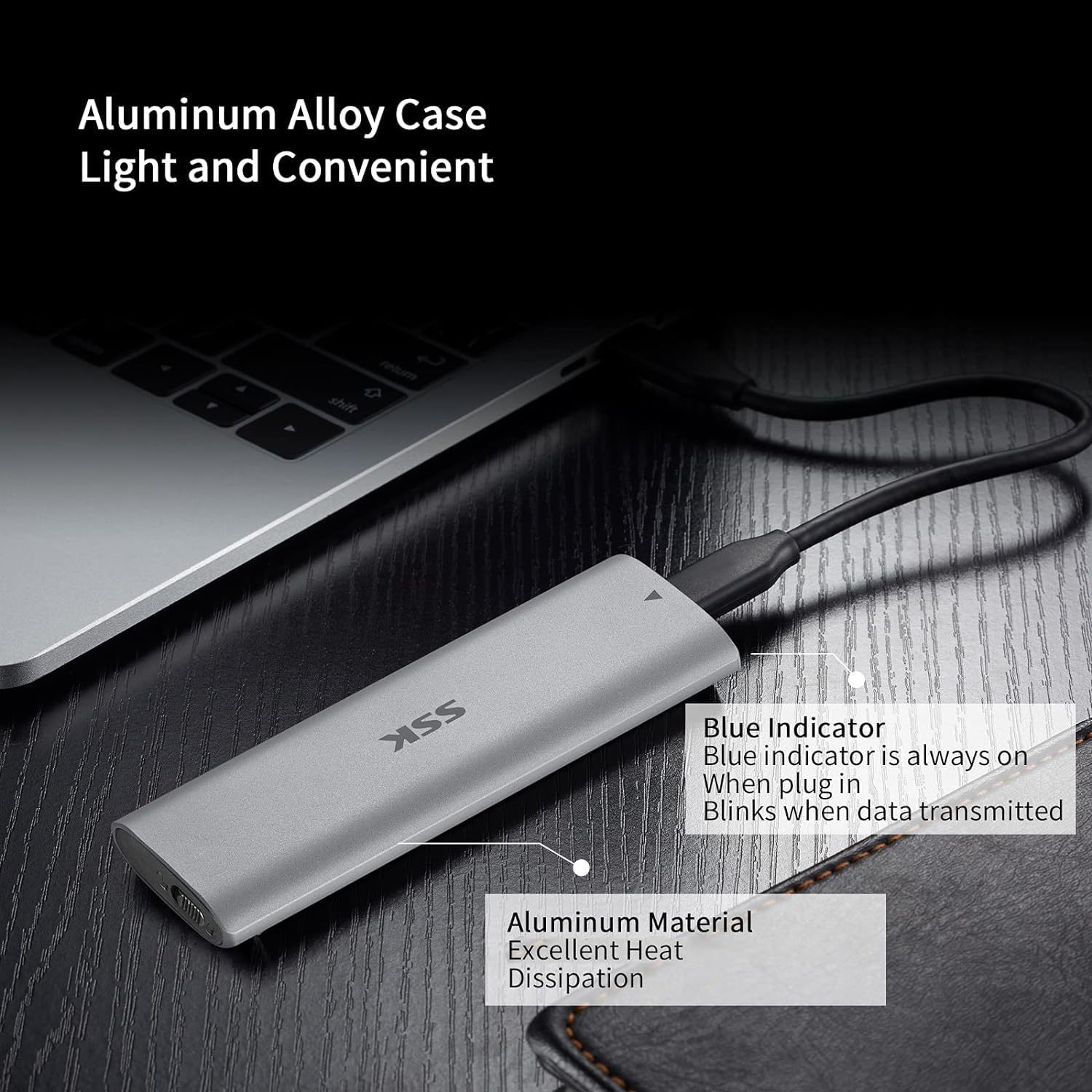

Fashion Design
Adopts aluminum alloy shell, Slim design, and excellent heat dissipation, be portable and easy to carry.It will be the best choice for trip and business travel.
Main Features
Tool-free design and fastest USB storage speeds!
Tool-free design and no additional tools required. With two cables, USB A to C and USB C to C which suitable for all Host PC ports.
Supports Plug & Play and Hot-Swapping.

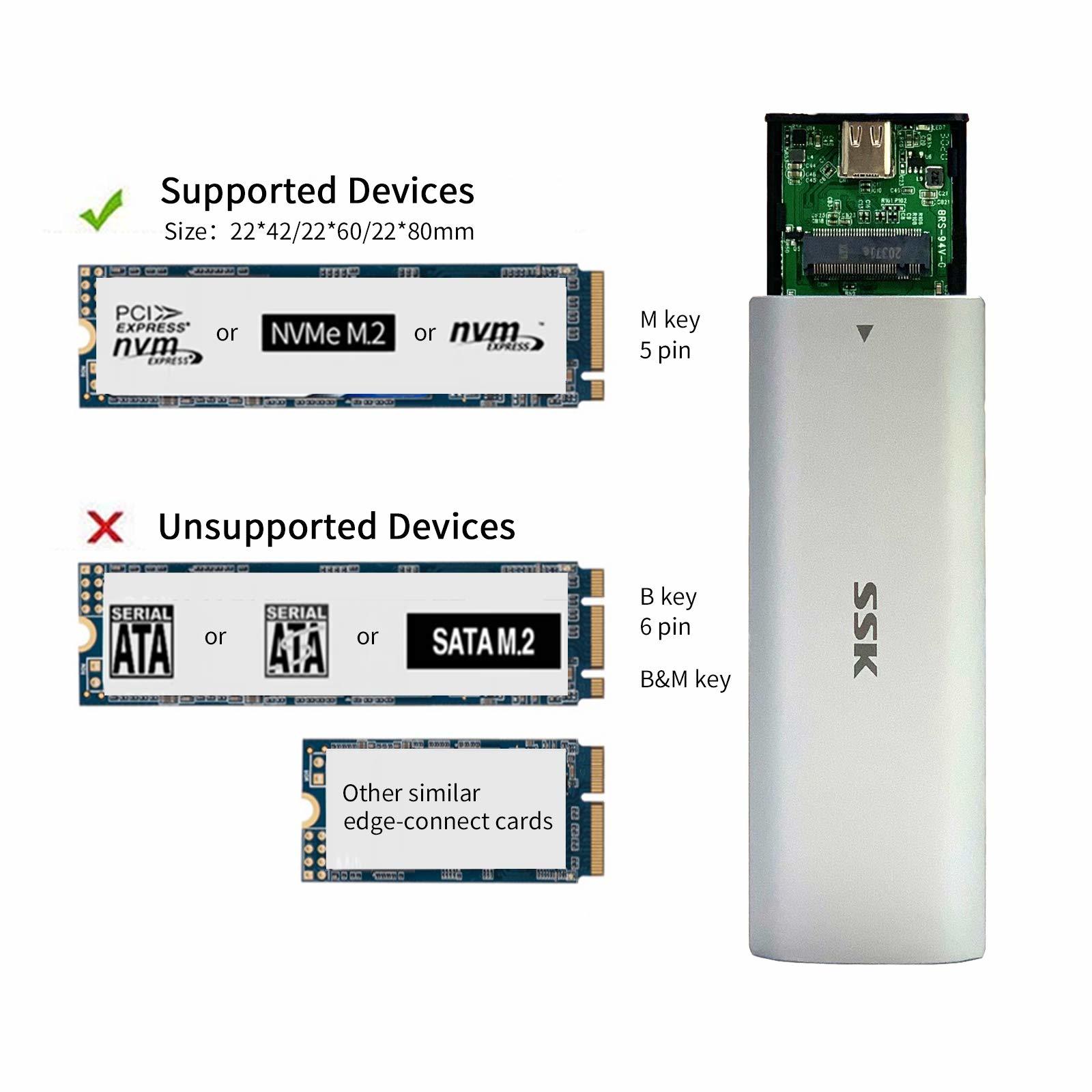

M.2 NVMe SSD Compatibility
Compatible with M.2 NVMe SSDs
Not compatible withB Key and B+M Key Connectors.M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M.2 form factor SSDs
NVMe SSDs use exceptionally high performance storage media that will run hot when under load.
The rubber SSD retention peg can be moved to support multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230.

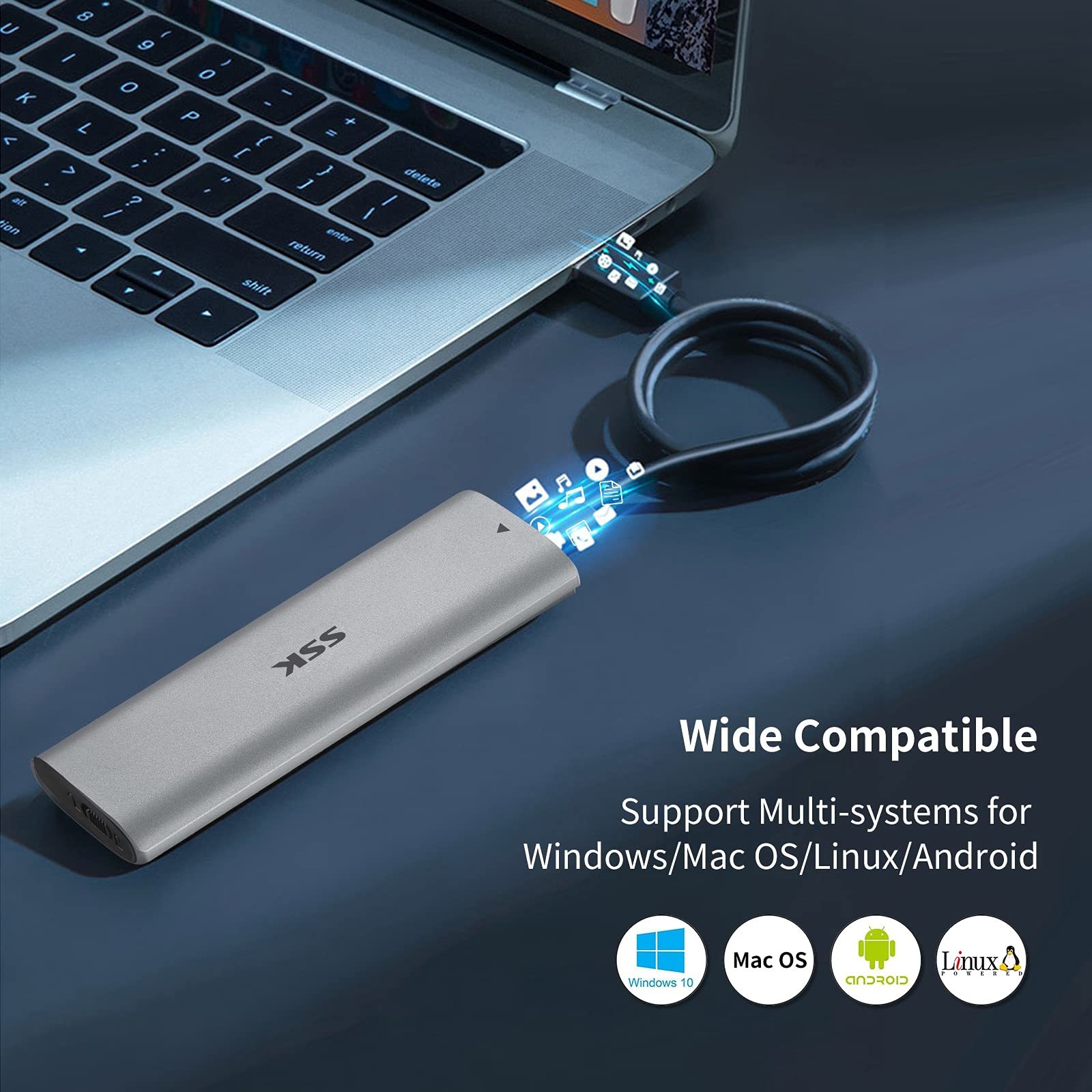

Multi OS Compatible
Windows 7 or above, Mac OS 10.10.5 or above, Linux, and Type C Android Phones.Blue Indicator is always on when plug in, and flash when read or write data.
1. Ｐlease slid to open and take the middel frame out of the enclosure.
2. Place the SSD at and angle of 45 degress into the PCB.
3. Insert the fixing hole at the end of the M.2 SSD into the slot in the middle of screw B, insert screw A and tighten it. Otherwise, there will be large screws preventing the installation of the enclosure.
4. Put the thermal pad on the SSD,leave the sheet on the thermal pad.
5. Inserting in the direction of the arrow,the end with the hook goes slowly slide into the shell first. When you hear a bang, it means that it is locked
Note:
１.After installed, when the first time to use the new SSD, it may not be found, please partition and format it first under disk management, then it can be used normally. If want to work on both Mac and Windows OS, please format it to EXFAT.
２. Pless kindly noted our item work well on all brandsM.2 NVME PCIe 2230, 2242, 2260, 2280mm SSDup to 4TB including Intel 600p, 660p, Sumsung, WD, Crucial etc. If any question you have, please mail us, we will help you well.
３.Not compatible with MacBook original SSD．
Thank you for your notice!
According to the New USB-IF standard, the USB 3.2 specification replaces the USB3.0 USB3.1 specification and it introduced a new nomenclature, the USB 3.2 specification absorbed all prior USB 3.0/3.1 specifications, So, our 10Gbps USB C NVME SSD Enclosure, we can say USB3.1 Gen 2 or USB3.2 Gen 2(Old Nomenclature /New Nomenclature)
USB 3.2 New Nomenclature:
1. USB3.2 Gen 1 = USB3.1 Gen 1 , Product transfer rate is up to 5Gbps, Marketing name: SuperSpeed USB
2. USB3.2 Gen 2 = USB3.1 Gen 2 , Product transfer rate is up to 10Gbps, Marketing name: SuperSpeed USB 10Gbps
3. USB3.2 Gen 2X2, Product transfer rate is up to 20Gbps, Marketing name: SuperSpeed USB 20Gbps
